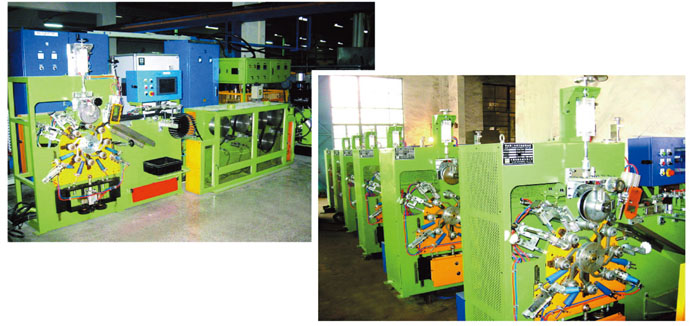

半鋼輪胎鋼絲圈三角芯熱貼聯動線
設備用途 Equipment use Equipment use
用于將擠出的三角膠芯貼合到鋼絲圈上，完成鋼絲胎圈的帖合。
It is used to join the extruded apex core to bead to finish the joining of bead.
設備特點Equipment characteristics:
Ф90銷釘式冷喂料擠出機，三角膠斷面力矩牽引裝置、膠冷卻裝置、風冷冷水/冷風機組、膠條送料裁斷裝置、帖合成型裝置組成。
Ф90 pin type cold feeding extruding machine, apex section torque traction unit, rubber cooling unit, air cooling
|
主要技術參數Main technical parameters |
|
序號 № |
適用鋼絲規格圈范圍
Applicable bead specification range |
鋼絲圈內直徑范圍
Bead inner diameter range |
鋼絲圈斷面形狀
Section form of bead |
|
1 |
13〞-19〞 |
Ф30mm-Ф495mm |
矩形/六角形 |
|
2 |
胎圈寬度范圍
Tyre bead width range |
三角膠高度范圍
Apex height range |
三角膠芯厚度范圍
Apex core thickness range |
|
3 |
6mm-9.5mm |
20mm-60mm |
5mm-12mm |
|
4 |
三角膠芯的角度
Apex core angle |
三角膠接頭角度
Apex joining angle |
貼合接頭搭接
Joining, lapping |
|
5 |
90° |
90°-95° |
半自動Semi-automatic |
